Description

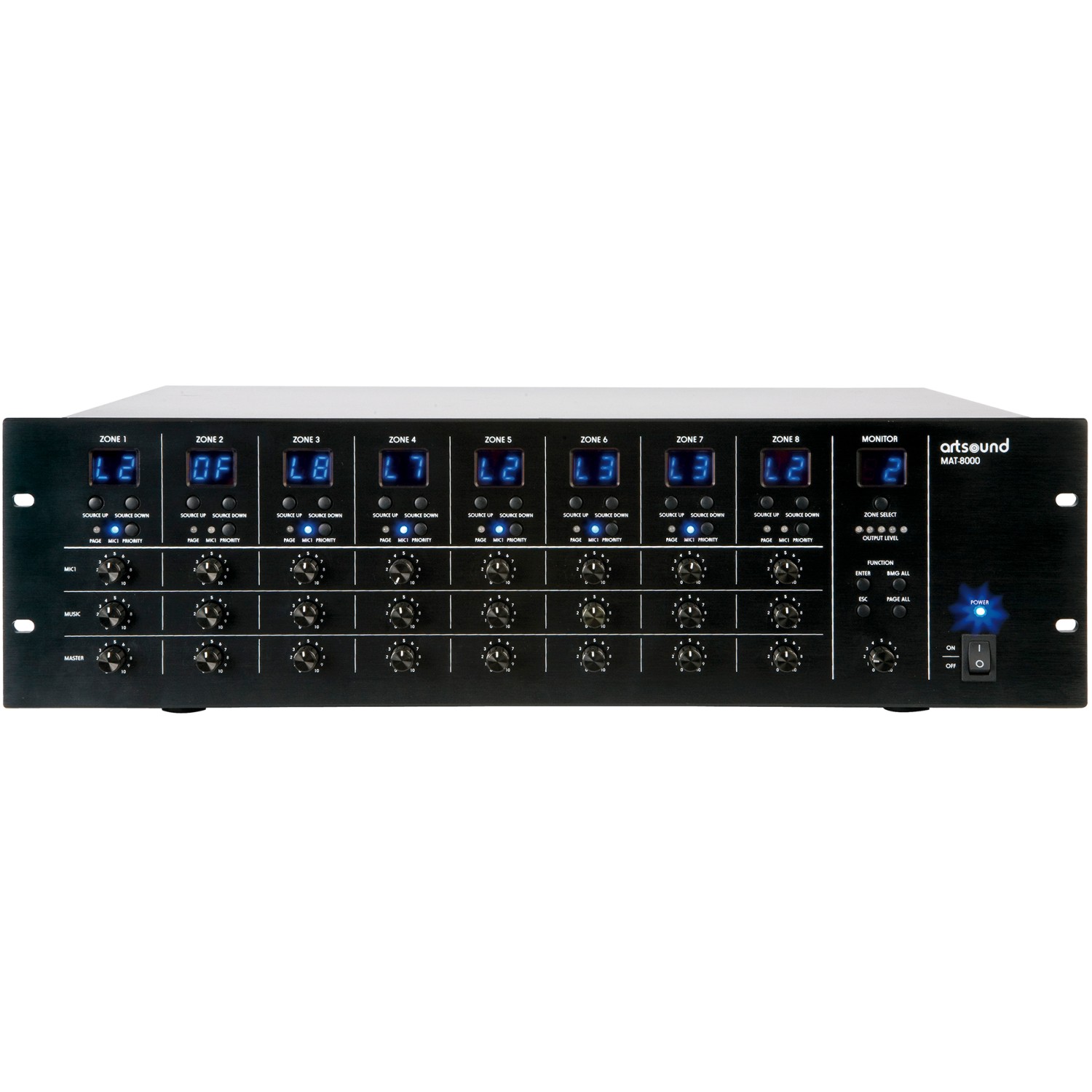

This high-performance 8-zone matrix guarantees the ultimate in flexibility. Its name says it all: you simultaneously distribute different sources to up to 8 zones. Moreover, you can also add sources locally, adjust the volume, etc.
fast_forward
8 Zone audio matrix
Send any input signal to any zone.
radio_button_checked
Possibility of using the optional wall panels WP-8000B and WP-8000C.
mic
Optional selective microphone available (MIC-8000A)
Frequency range
MIC 80Hz - 18KHz / Line 20Hz - 20kHz
Dimensions
132 x 484 x 425mm (h x w x d)
Weight/piece
20.15kg
AUX input
4 RCA
Power supply
240V AC / 24V DC
Tone control
Yes
Direct output
70V / 100V / 4 - 16Ω
LED level indicator
Yes
Output
8 x phoenix
Amp in
Yes
Pre-amp out
Yes
MIC input
4 phoenix / 2 RJ45 / 1 XLR
Chime function
Yes
Priority levels
MIC 1 / EVAC / MIC-8000A
Power consumption
320W
priority input
MIC 1 / EVAC / MIC-8000A
The zones
8
